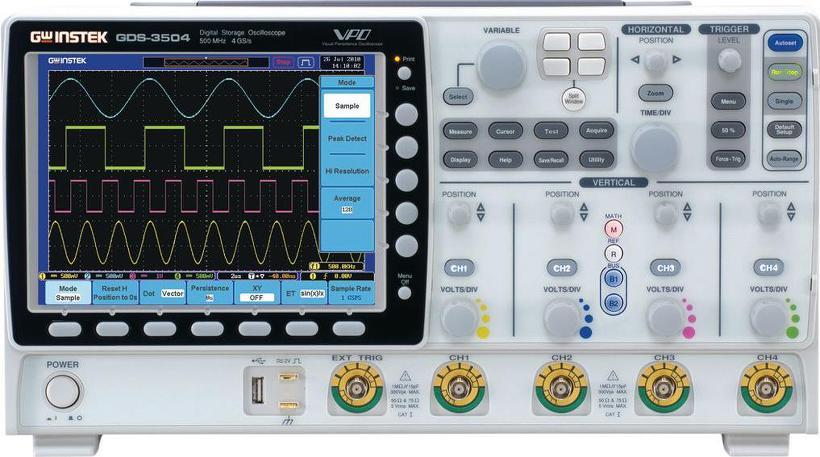

오실로스코프 (굿윌인스텍, 500Mhz, 4Ch, 1대)





- Features

​· 500/350/250/150MHz with 2/4 Channels

· 5GSa/s RT or 100GSa/s ET Sampling Rate

· Independent Memory for Each Channel

· VPO Technology

· Large 8-inch 800x600 Display

· Split Screen Function

· 3 Built-in Impedances (50Ω/75Ω/1MΩ)

· Power Analysis Software (Optional)

· Serial Bus Analysis Software for I2C, SPI and U



■ Description



A Hi-tech DSO Platform



The GDS-3000 Series is a new platform of 4-input channels, 500MHz bandwidth, 5GSa/s sampling rate, and VPO waveform display. The split screen feature has been designed to meet the requirements of multi-window & multi-signal tests in the research and the manufacturing fields. The optional power analysis software and the optional serial bus analysis software are available to facilitate the engineer's tasks in testing and manufacturing of the associated products.







GDS-3000_Manual.pdf
6.06MB
GDS-3000_Catalogue.pdf
7.82MB
